RGB to NTSC Video,S-Video and Component Video encoders

Pinout Diagrams

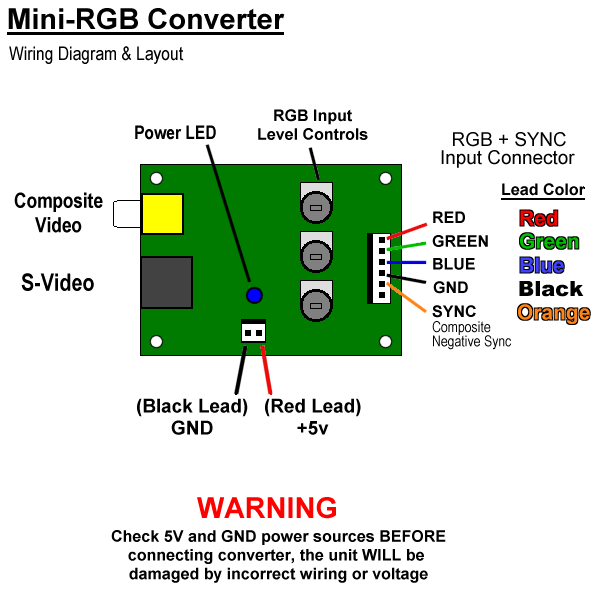

RGB to Video, S-Video
V3.X

Wiring Diagram

Click for fullsize image

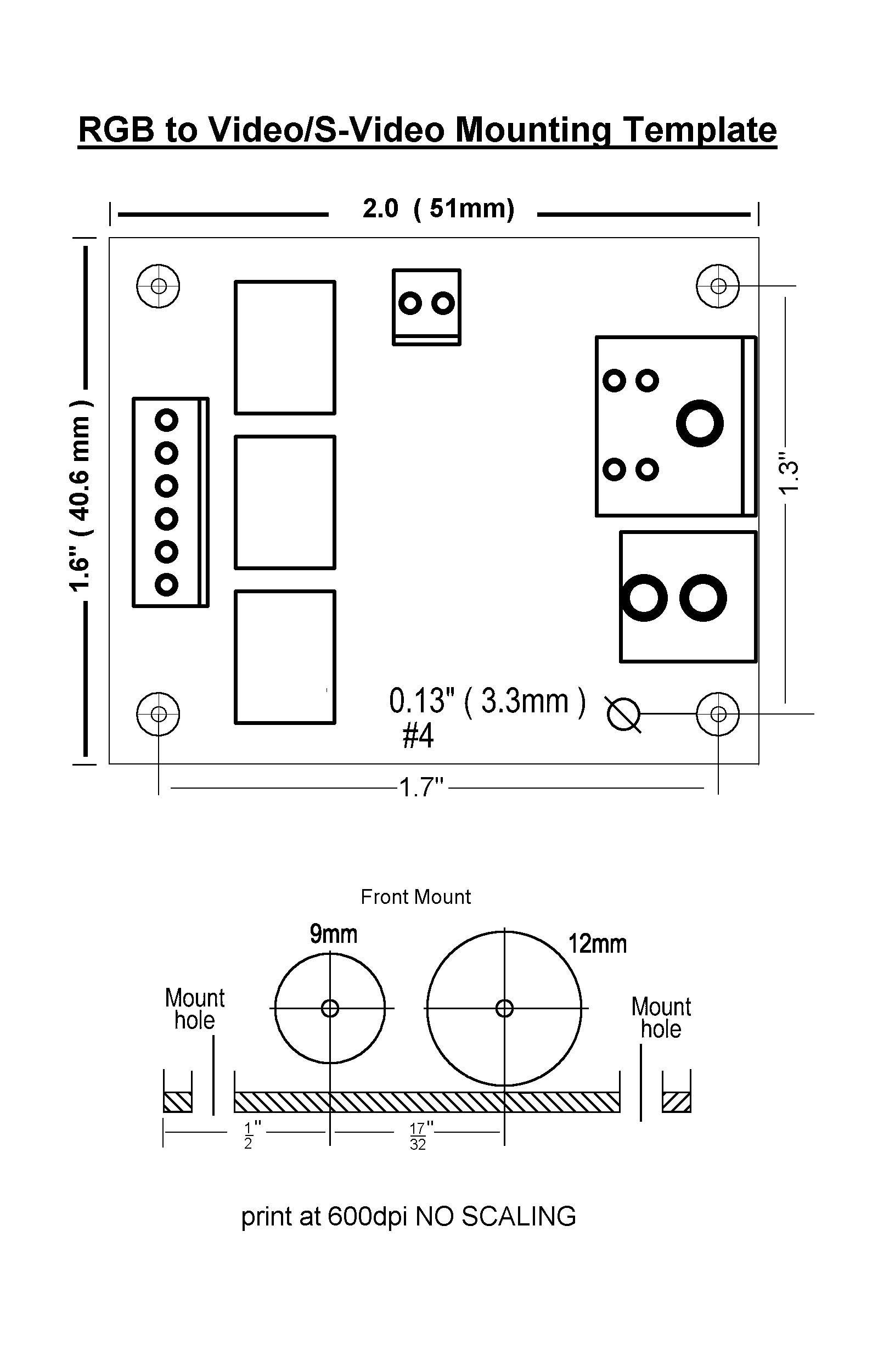

RGB to Video, S-Video
V3.X

Mounting Template

(print at 600dpi NO scaling)

Click for fullsize image
RGB to Video, S-Video
& Component Video
V4.X

Wiring Diagram

Click for fullsize image

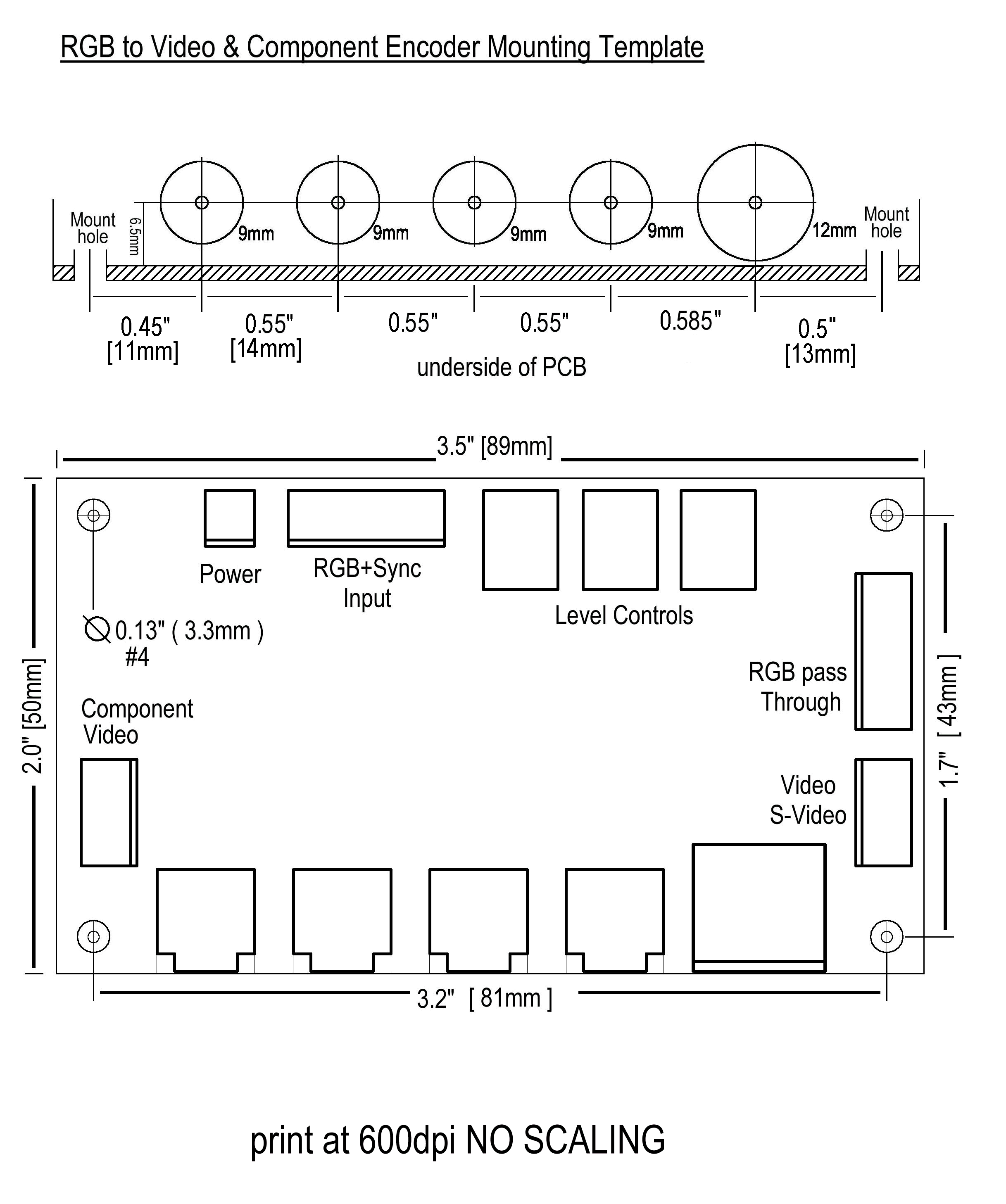

RGB to Video, S-Video
& Component Video
V4.X

Mounting Template
( print at 600dpi NO scaling)


Click for fullsize image

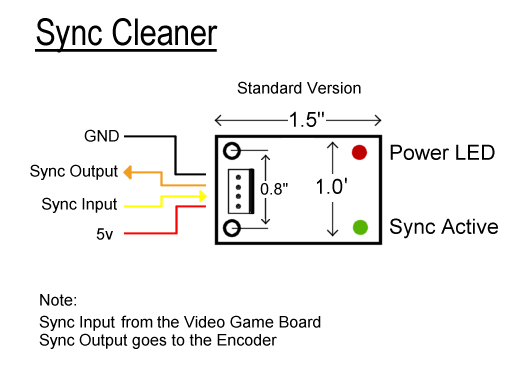

Sync Cleaner

Wiring Diagram

Click for fullsize image
Panel Mount Phono

Dimensions

Click for fullsize image

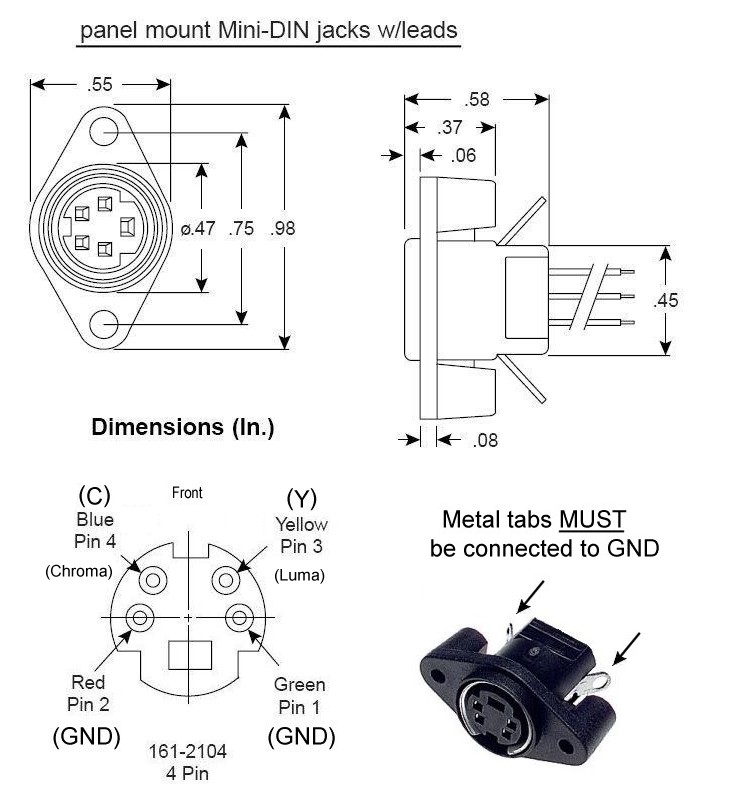

Panel Mount S-Video

Dimensions + Pinout

Click for fullsize image
S-Video Panel Mount Pinout
Wiring for V4.1 encoder

Wiring Diagram
V4.1 video s-video panel mount output wiring
Click for fullsize image



S-Video & Video
Panel Mount Wiring
V3.1 encoder

Wiring Diagram

Click for fullsize image
